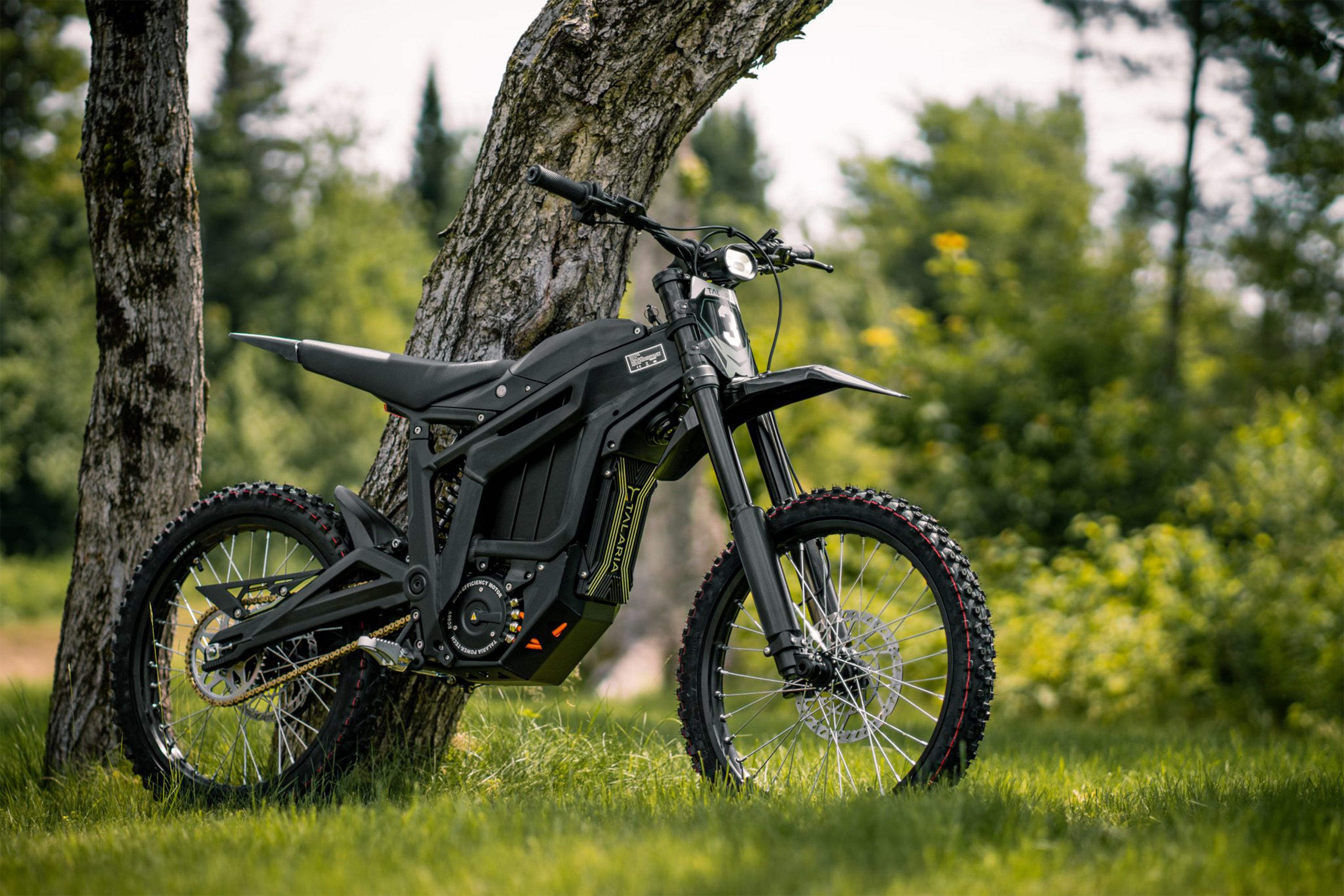

Talaria Sting R MX4 | Electric Dirt Bike
Couldn't load pickup availability

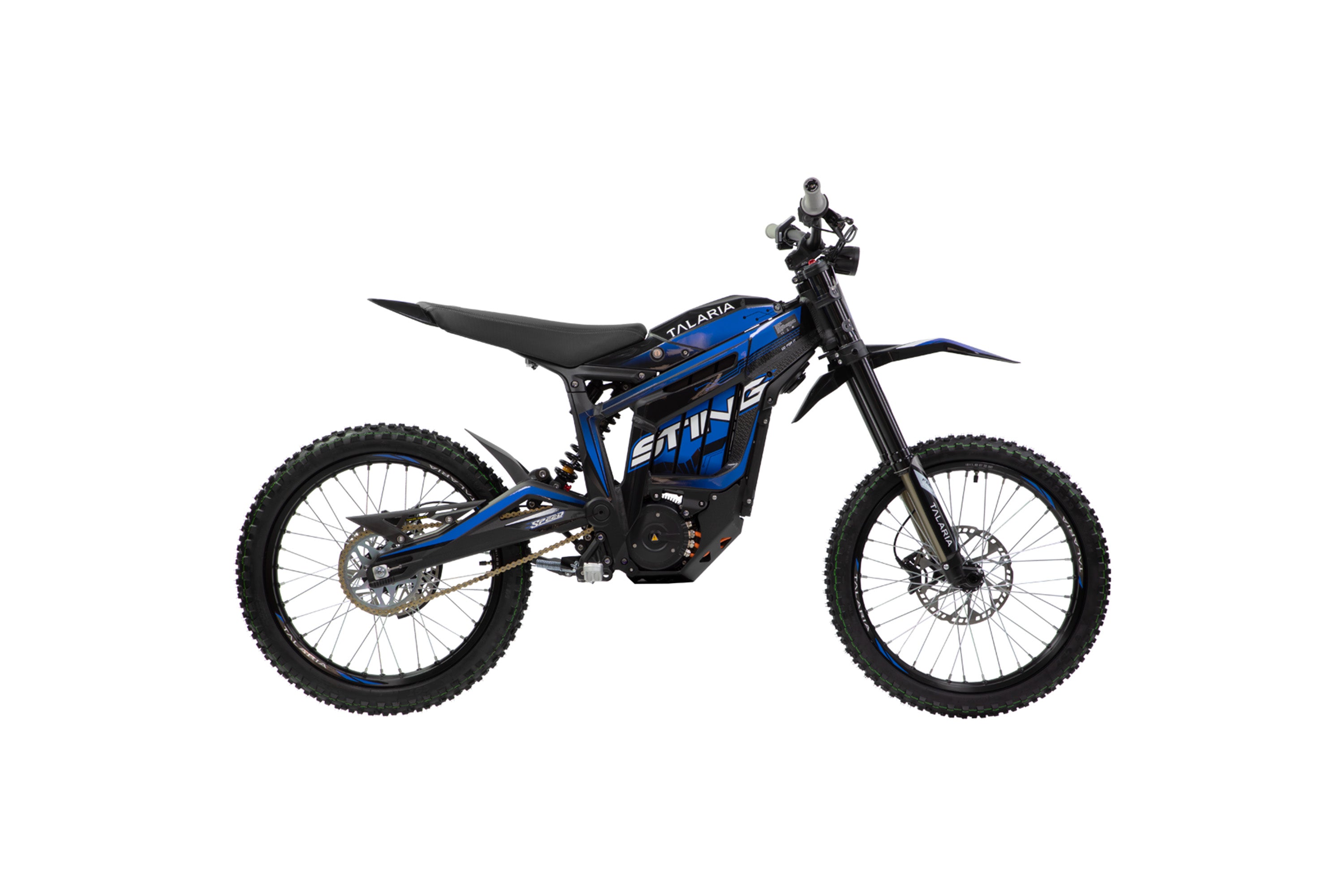

Talaria created the Sting to bring cutting-edge electric performance to all riders. The MX4 features a lightweight frame, powerful mid-mounted IPM motor, 60V/45Ah battery and 120 km (78 mile) max range. Feel instant torque through the Sting’s intelligent gearbox and extremely quiet drivetrain. Further highlights include 4-level regen braking, a compact, well-balanced chassis and overall low maintenance.
All these features and more make the Talaria Sting R MX4 an ideal electric bike for experiencing the passion and thrill of off-road adventures.
HIGHLIGHTS
STING MX4: BUILT FOR YOUR NEXT ADVENTURE
NEW FOR 2024
Black rear brake disc guard, pegs, mount, wheel spokes & sprocket
KEY FEATURES
45Ah battery: Best-in-class range and battery life
Internal gearbox delivers quiet, reliable power (no more breaking/wearing out belts)
Regenerative braking (can be adjusted easily via display screen for optimum performance)
Fast charging time (3 hours)
Improved battery connector (2023)

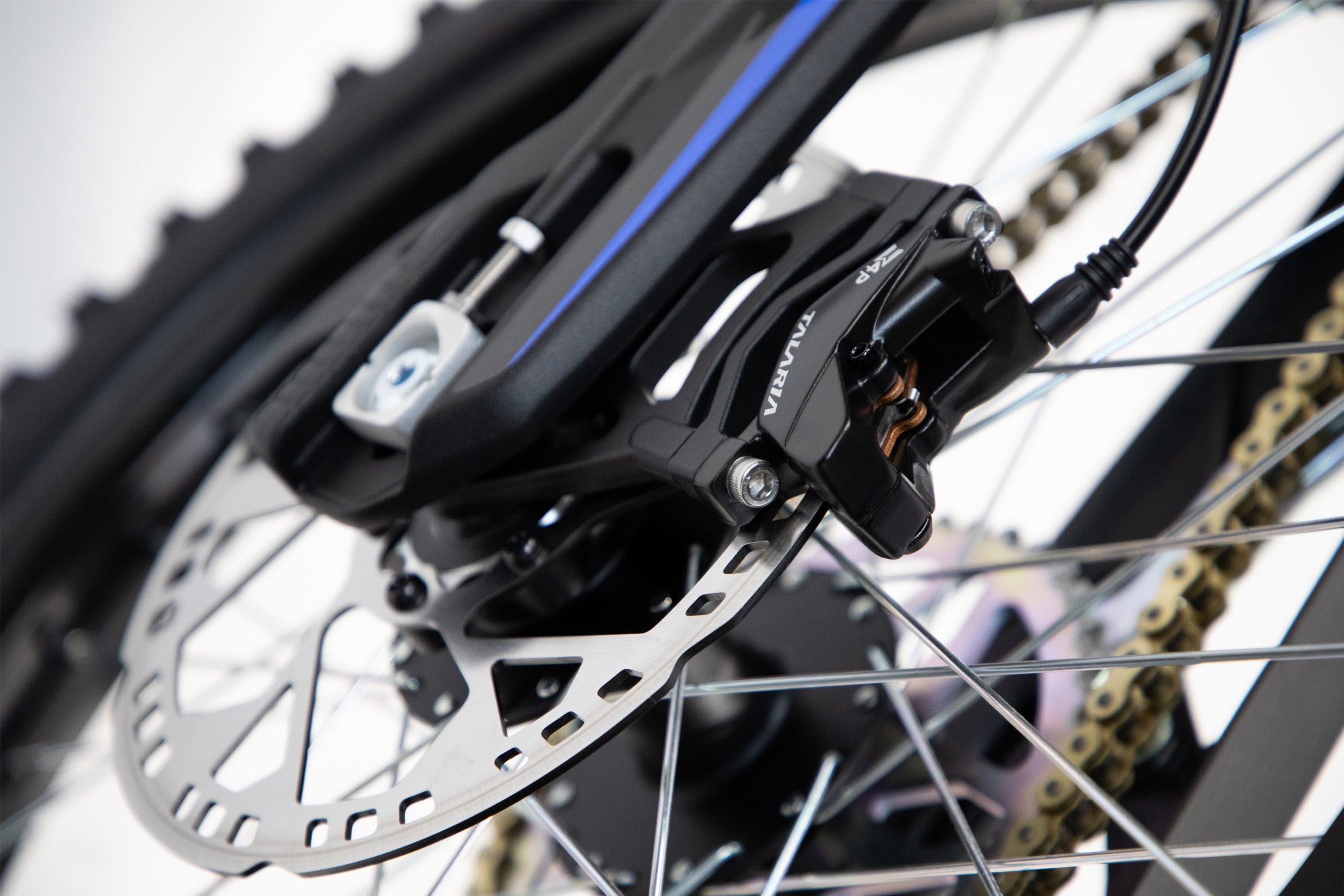

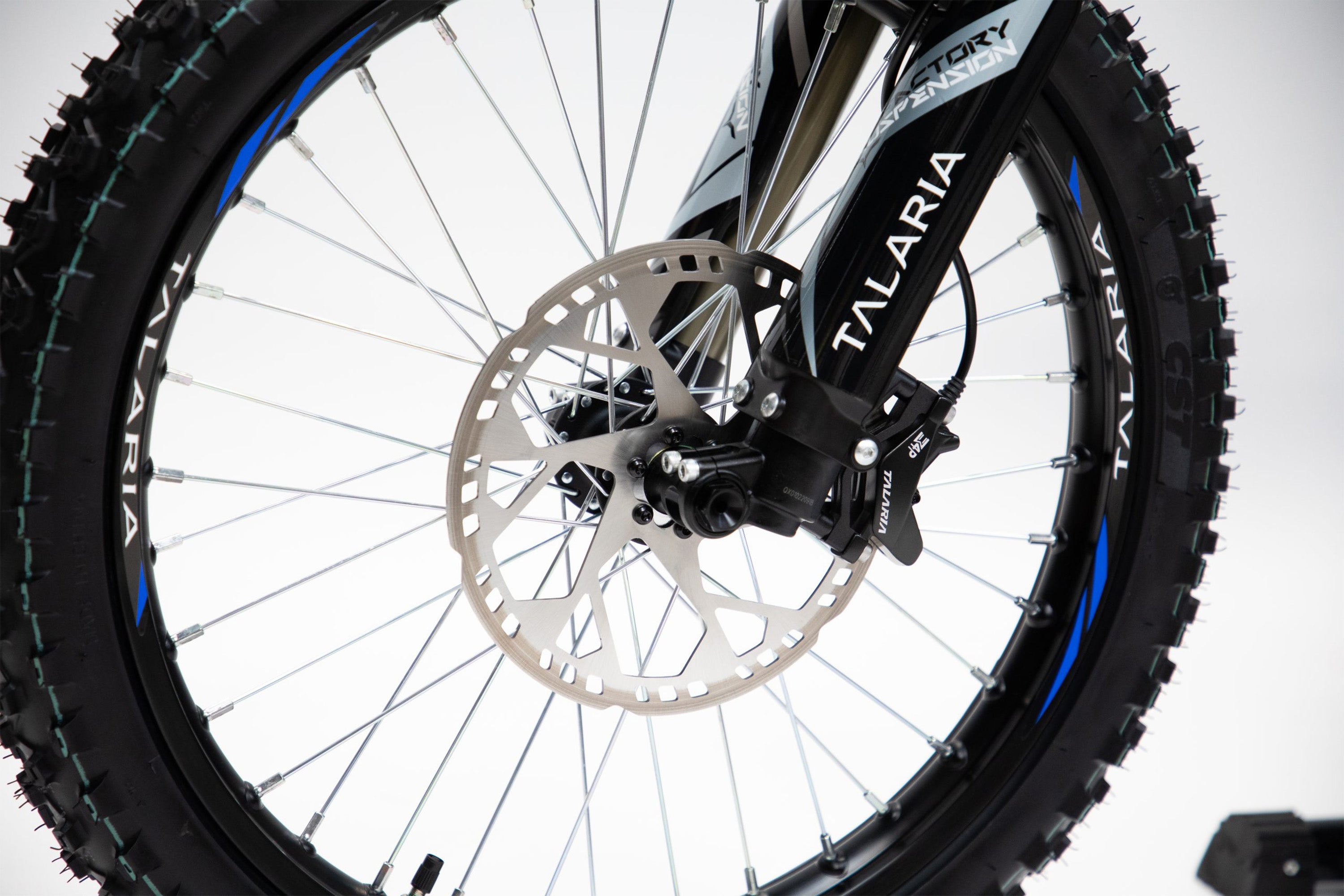

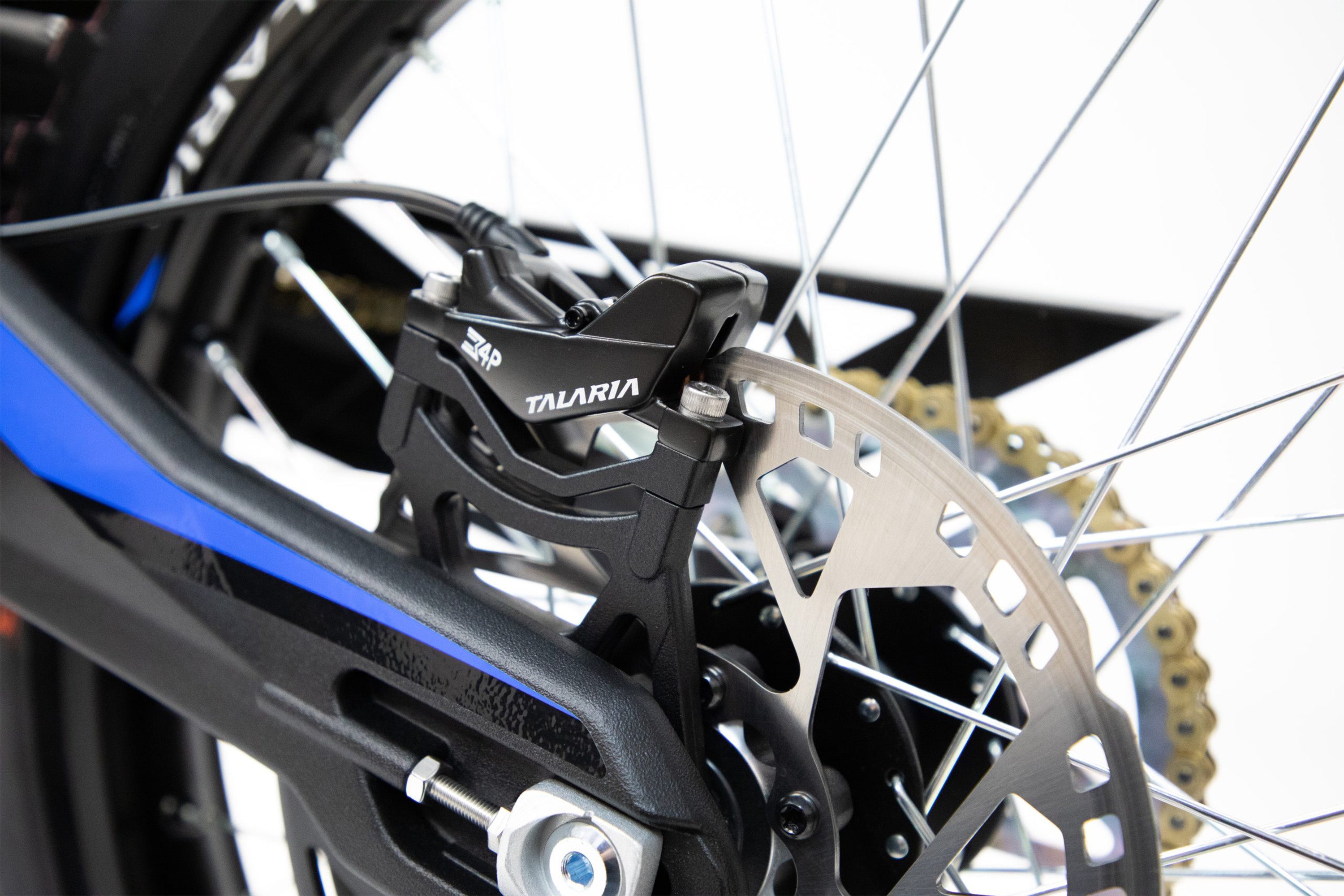

220mm brake rotors
Improved DC IPM motor (2023), 94% efficiency

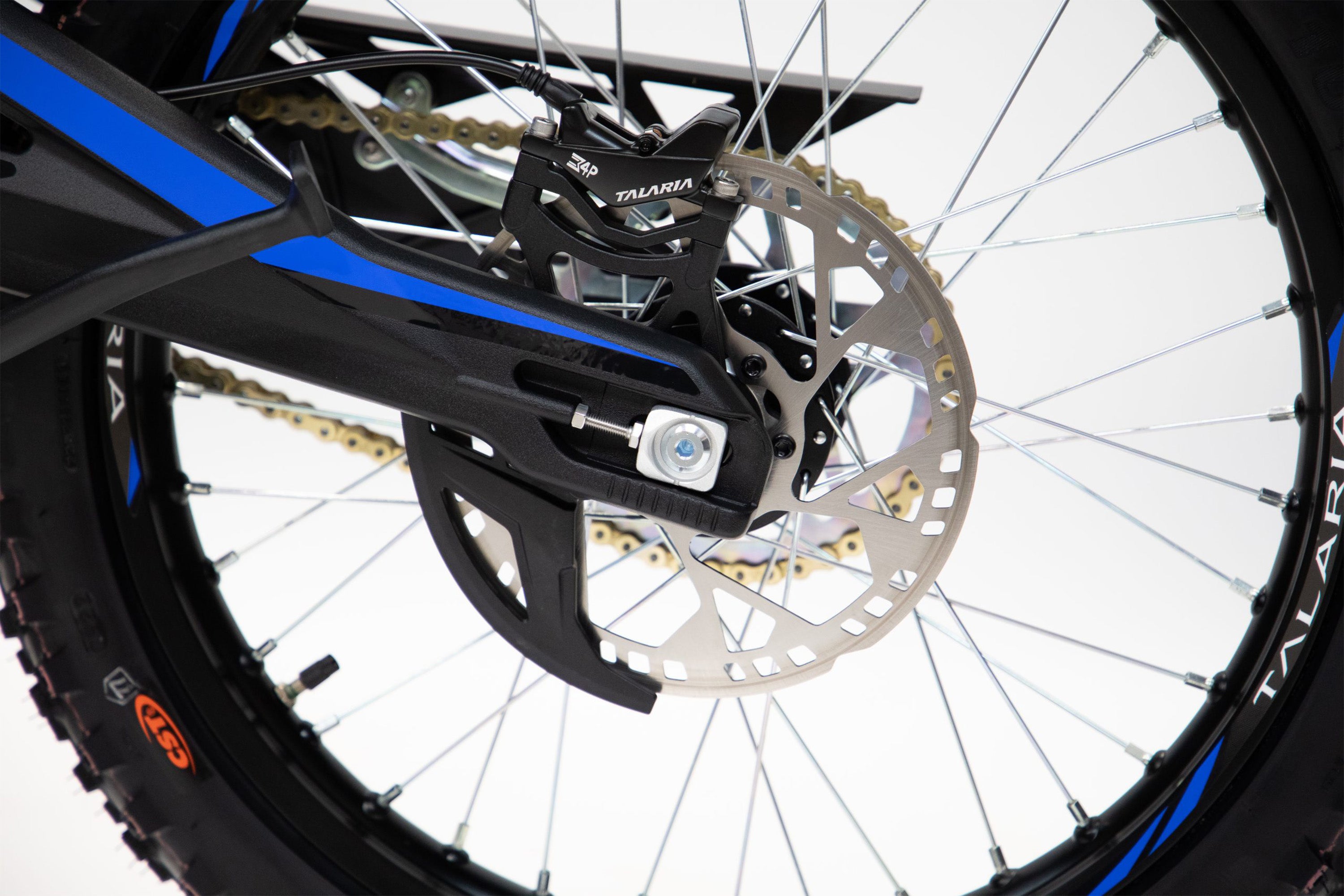

Rear brake disc guard
125 amp circuit breaker
TECH SPECS
VEHICLE
Chassis Material: 6061 T4 & T6 aluminium alloy
Process Method: Forged under 6,000 tonnes of pressure
Surface Method: Anodizing
Headlight: LED
Front Fork: Fastace or Talaria Factory

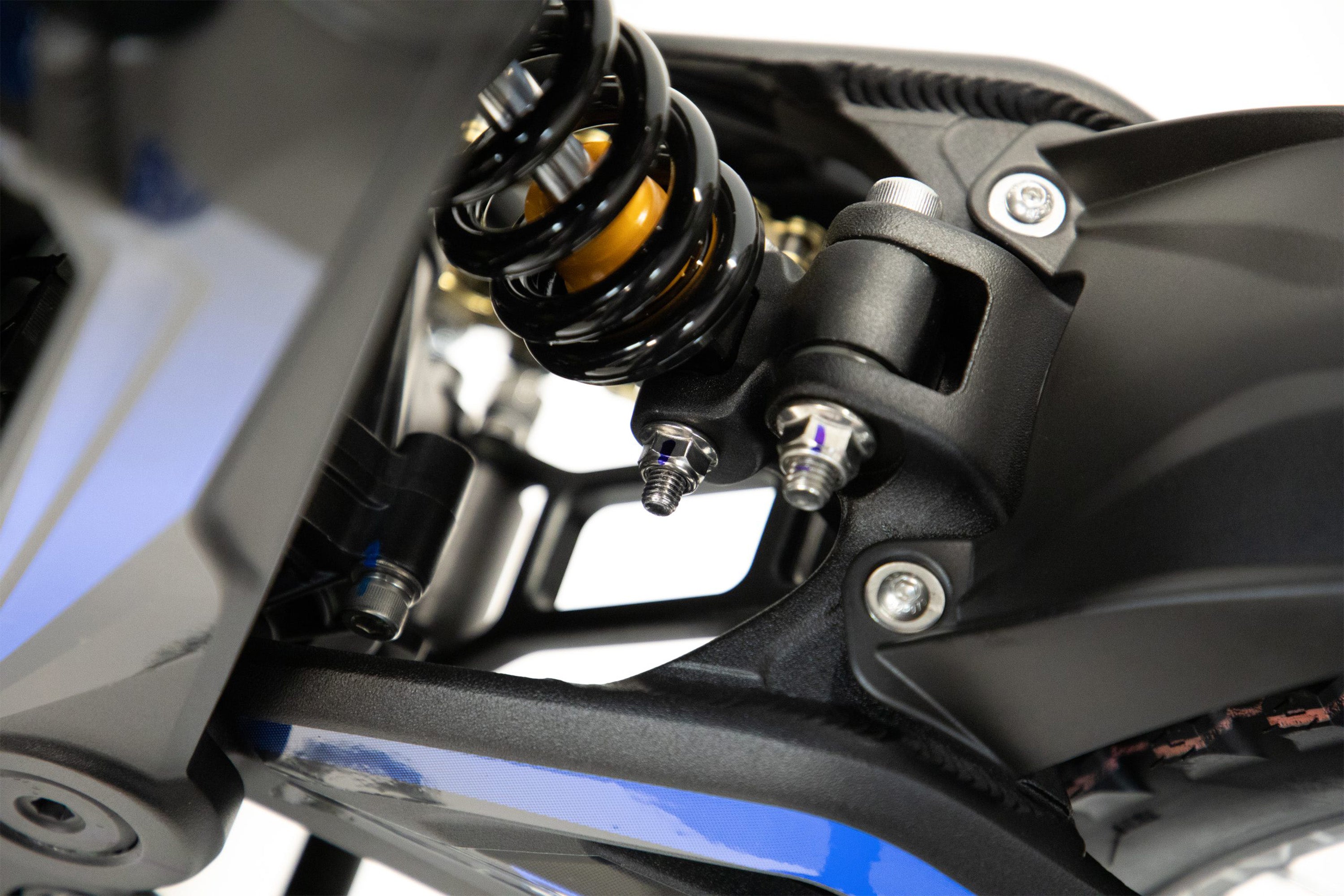

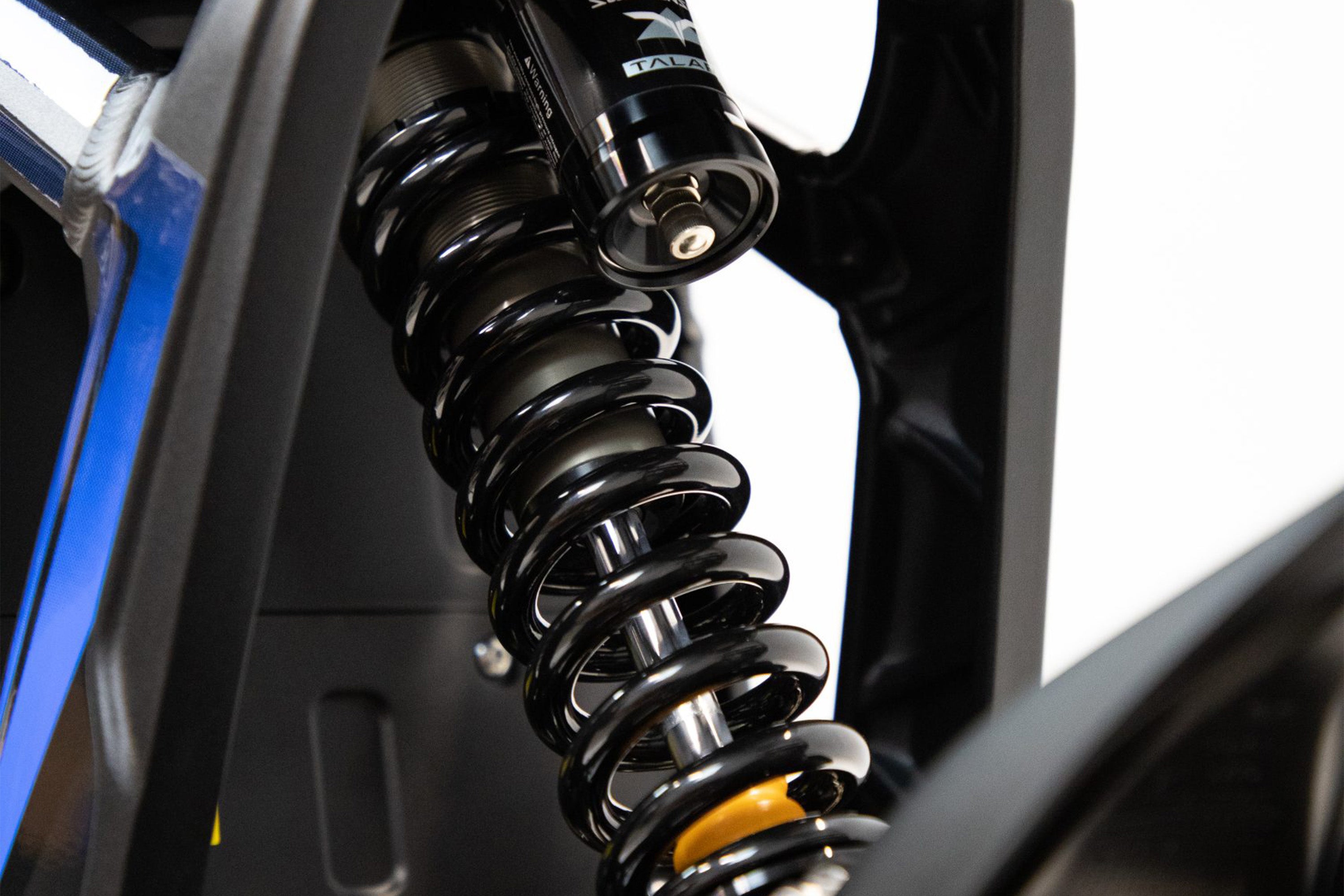

Rear Shock: Fastace/HT/Talaria Factory
Wheel Size: 19 in. front/rear
Tires: FR 70/100-19 / RR 80/100-19 off-road tires
Max Range: 100 km @ 25 km/h (62 miles @ 15 mph)
Net Weight: 66 kg (145 lbs) with battery
Vehicle Dimensions: 1,880 x 770 x 1,088mm (74 x 30.3 x 42.8 in)
Seat Height: 840mm (33.1 in)
Wheelbase: 1,250mm (49.2 in)
Handlebar Length: 760mm (29.9 in)
Ground Clearance: 300mm (11.8 in)
MOTOR
Motor type: Air-cooled DC IPM
Mounting Position: Mid-mounted
Weight: 7.0 kg
Motor Ext. Diameter: 180mm
Peak Efficiency: 94%
CONTROLLER
Controller Type: FOC
Weight: 2 kg (5 lbs)
Dimension: 248mm x 128mm x 50mm
Peak Efficiency: 92%
Highest Work Temp: 100°
POWER
Nominal Voltage: 60V (DC)
Maximum Speed: Factory limited to 32 km/h (20 mph)
Nominal Torque: 45 N.M
TRANSMISSION
Gear Ratio: 8.35 (44T) / 9.18 (48T)
Primary Transmission: Gearbox

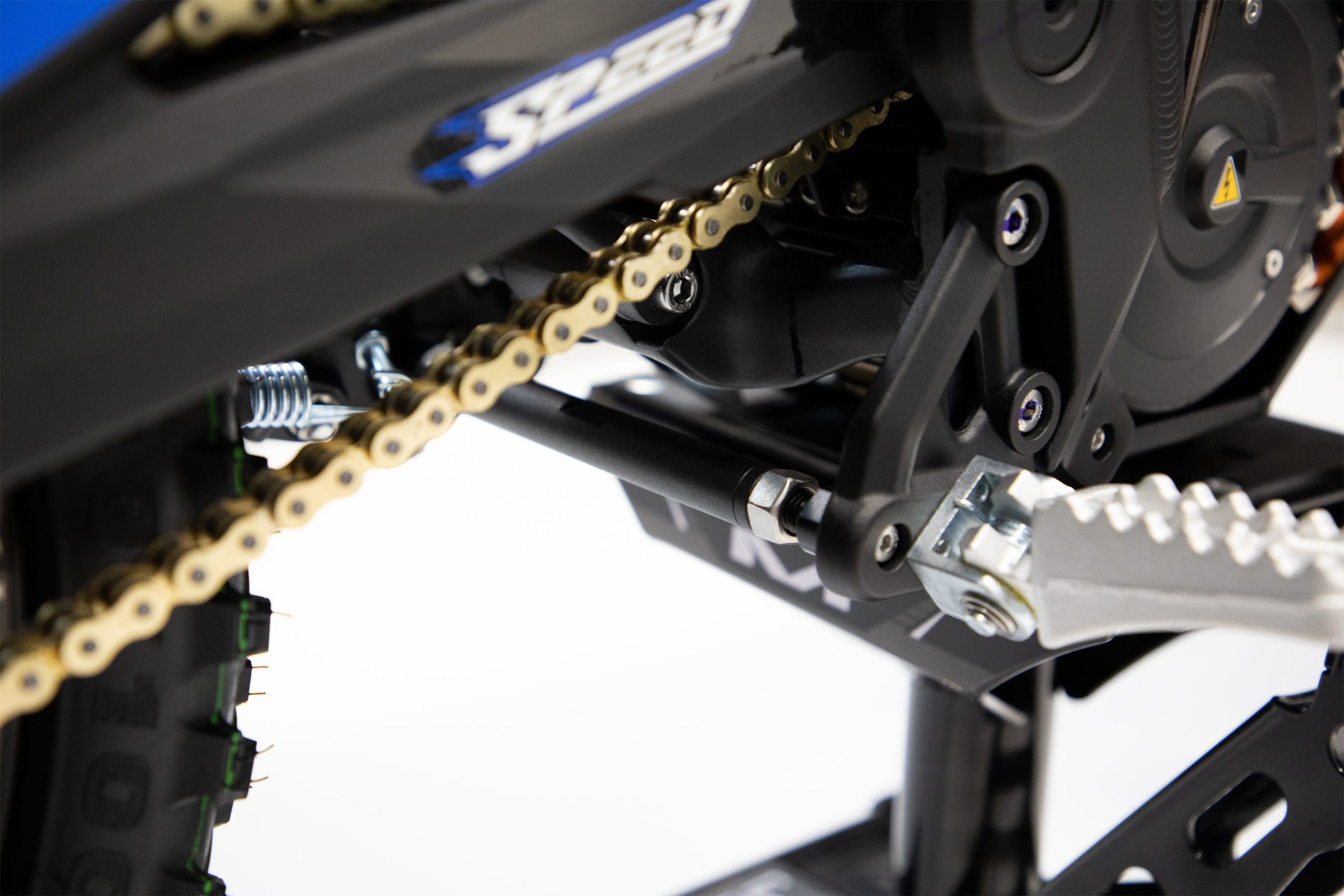

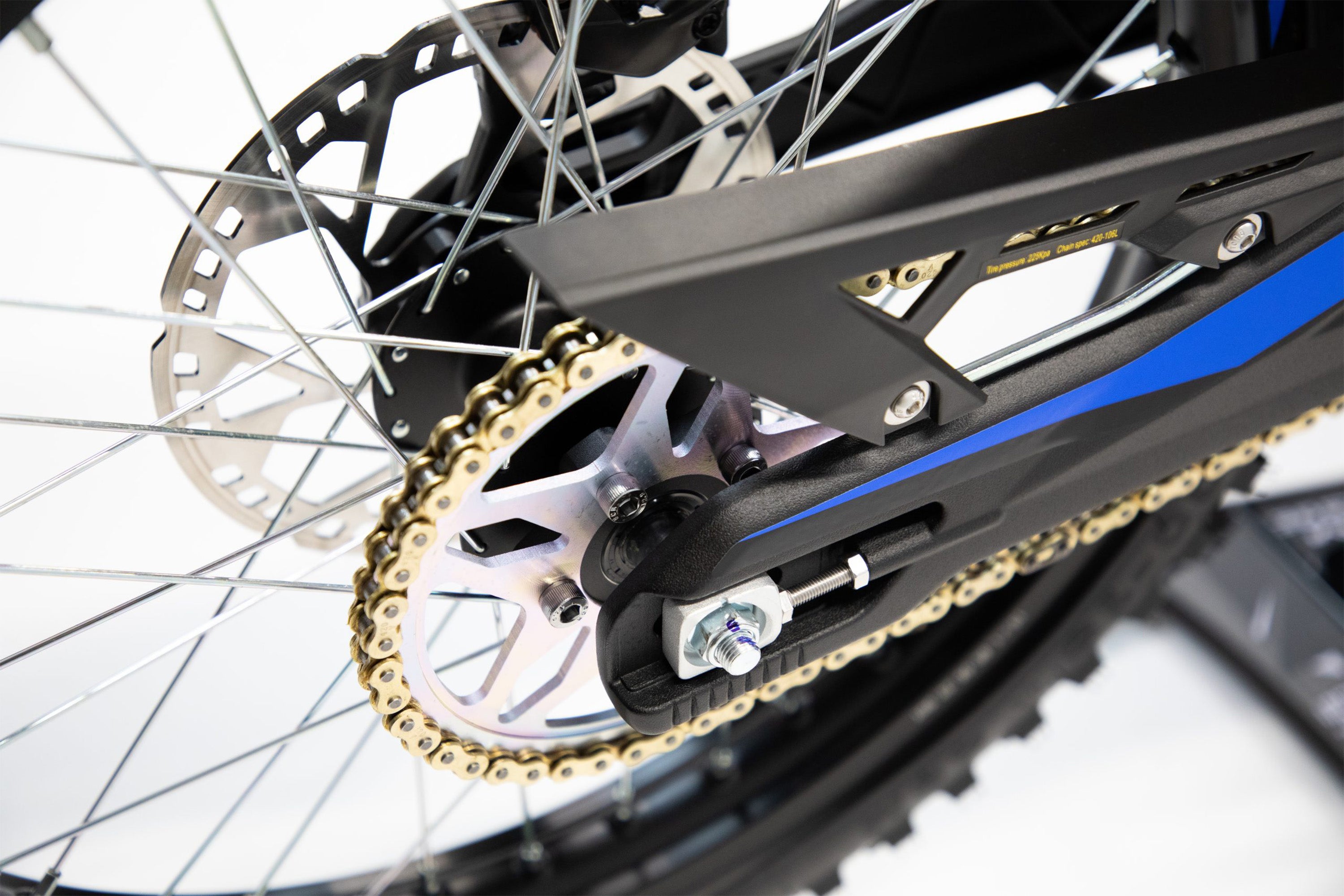

Drive Transmission: Chain
ELECTRONIC
Battery Pack: 60V 45AH
Battery Size: 170mm x 140mm x 380mm
Battery Weight: 12.85 kg (28.3 lbs)
Battery Cells: LG Brand 21700 cell (5000 MAH/cell)
Display: Speed, battery level, voltage, odometer
Regenerative Braking: 4-level adjustment
BATTERY
The Sting MX4 is powered by a strong 60V/45Ah lithium-ion power pack (2,700 watt-hours). Easily swappable, the battery pack can be removed and replaced with another fully charged power pack in seconds for limitless range. With electric auto-grade LG 21700 lithium-ion battery cells, state of the art programmed battery management system (BMS) and optimized internal structure, this battery pack ensures the bike brings you safe, hi performance off-road riding.
DISPLAY
The display screen features a high-contrast OLED display that offers riders a clear info display with low power consumption. With CAN communication, the dash can transfer data with the BMS and controller. The display menu provides a range of information, which include top/average speed, range, battery data, riding mode, error codes, regen level and more. The dash is also adjustable if using different wheels, sprocket size, regen levels, and can display in km or miles.
CONTROLLER
With the high-quality hardware, superb layout and intelligent programming, the Sting MX4 controller has an extraordinary level of transient current impact resistance, ultra strong anti-interference, high-precision EABS voltage and discharge current control, error inspection, high and low temperature protection, anti-runaway, and smart energy regeneration. This guarantees a powerful, exciting, and safe riding experience with respectable range.
POWERTRAIN
The customized combination powertrain design is just perfect for the light weight electric MX bike. The high efficiency brushless internal permanent magnet mid-drive motor, with top-class magnet material and advanced processing, is available to output 45N.m peak torque. With exquisitely crafted high accuracy gears, the gearbox runs even quieter and is much more durable than any belt drive systems. It’s time to say goodbye to that broken belt anxiety.
